'85-'07 EN450 (454LTD) EN500 Vulcan Keihin Side-draft CVK34 and CVK32 Carbs

This represents the half liter water cooled inline twins cruiser bikes. They are all an evolution of the original 454 LTD and used carbs similar to the sport version EX500's.They all do not actually have a California specific ID and each version has different internal tuning along with the EN500C that uses a different body design and tops. They all physically mount on all engines listed here, but interchanging is not recommended.

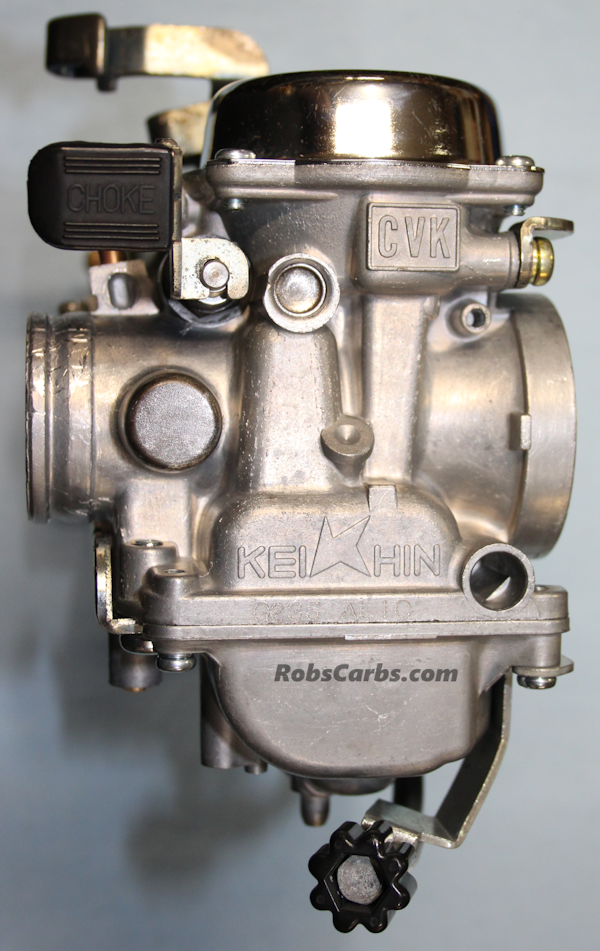

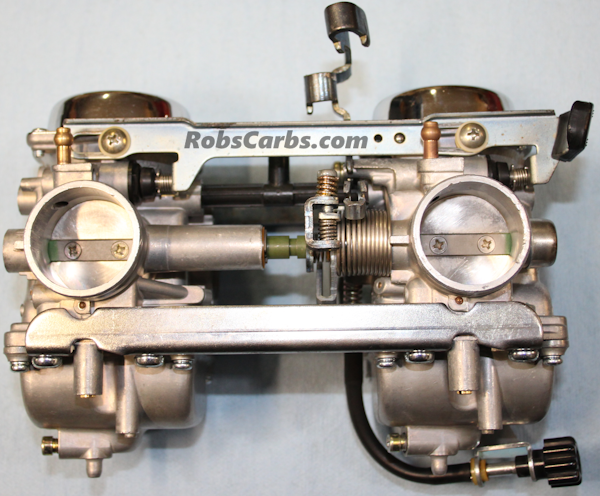

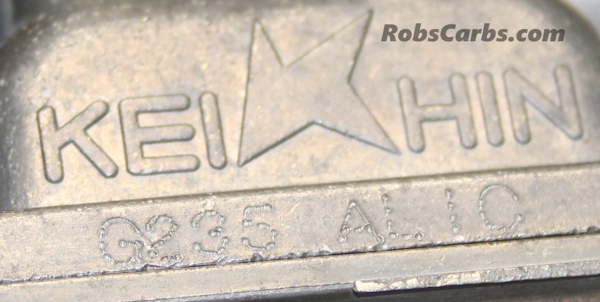

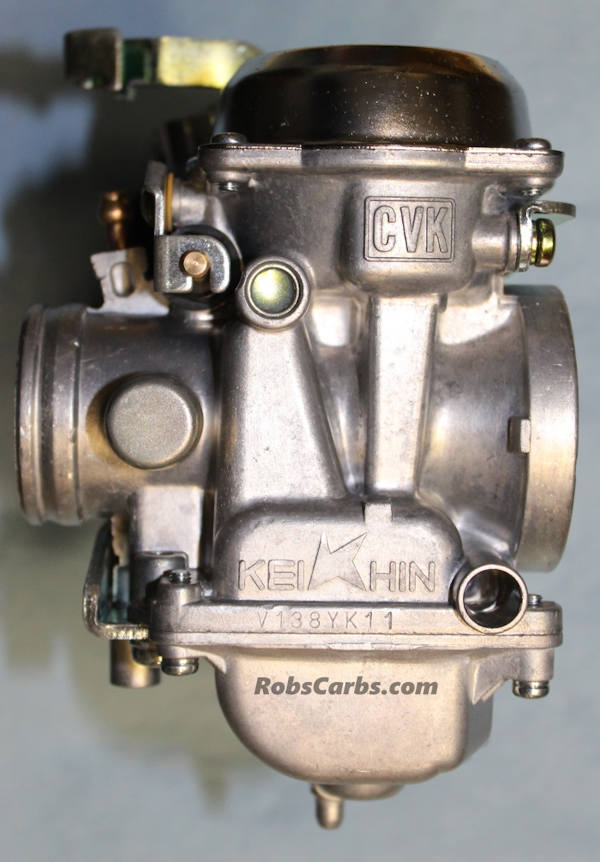

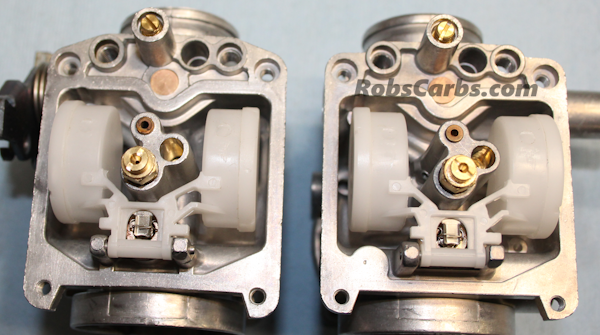

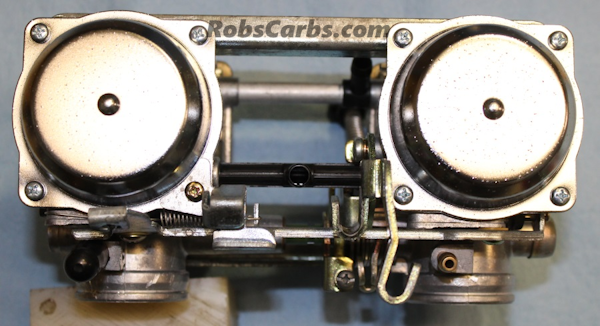

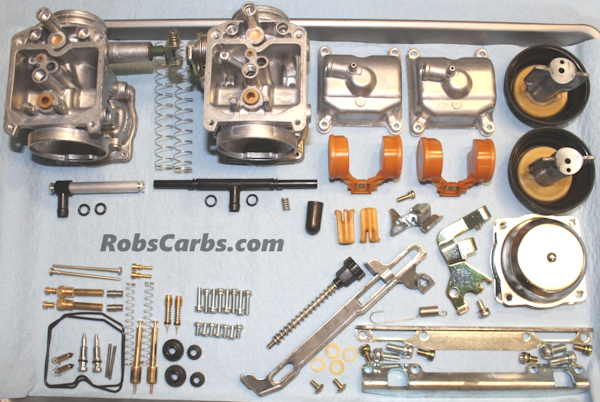

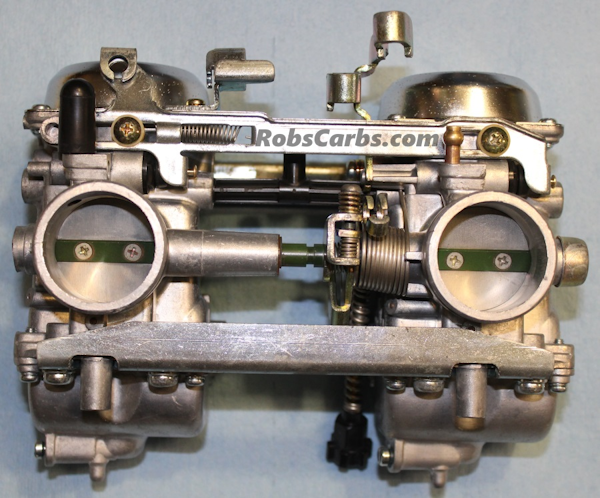

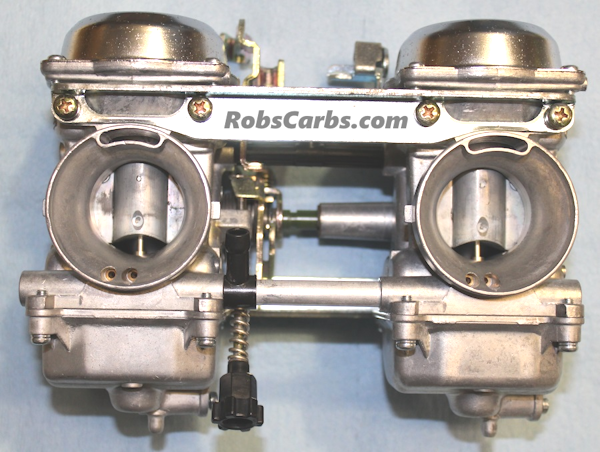

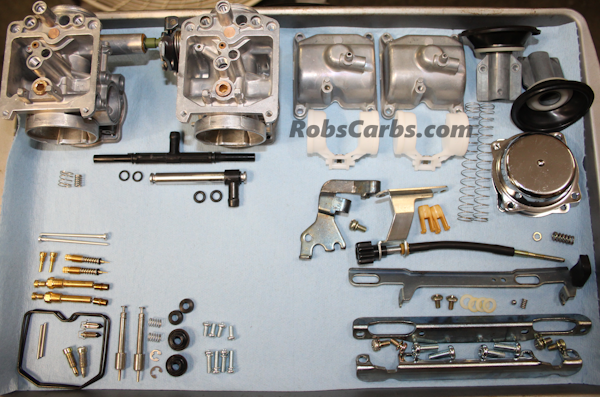

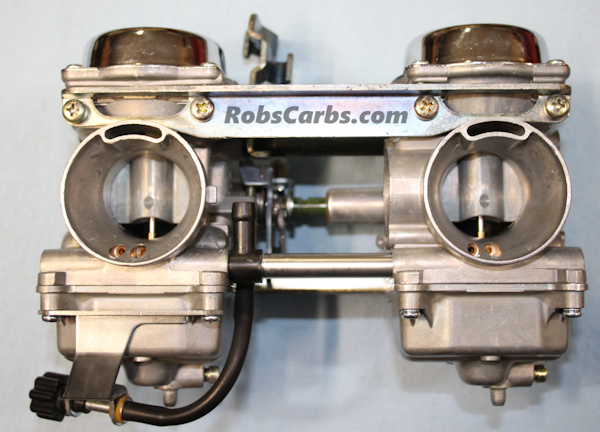

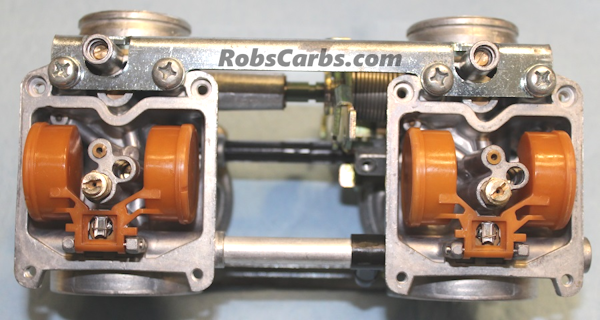

Pictured below is a set of '85-'90 EN450 (454 LTD) V138 carbs and a few pics of the EN500C '96-'07 G235 carbs. The EN500A is not shown, but they look exactly the same as the EN450 with the exception of the EN500A uses a choke lever bracket like the EN500C. The 500C carbs are kind of a cross breed of both yet being a taller version of a CVK32 and can be seen by the smaller top caps. These only represent US models and years.

'85-'90 EN450A1-A6 454 LTD--------------------------------------(V138)
'85-'90 EN450A1-A6 454 LTD---------------------------------------(V138) California

'90-'96 EN500A1-A7 Vulcan----------------------------------------(V568)
'90-'96 EN500A1-A7 Vulcan------------------------------------------(V568) California

'96-'05 EN500C1-C10 Vulcan 500 LTD-------------------------(G235)
'96-'05 EN500C1-C10 Vulcan 500 LTD---------------------------(G235) California
'06 EN500C6F Vulcan 500 LTD-----------------------------------(G235)
'07 EN500C7F Vulcan 500 LTD-----------------------------------(G235)

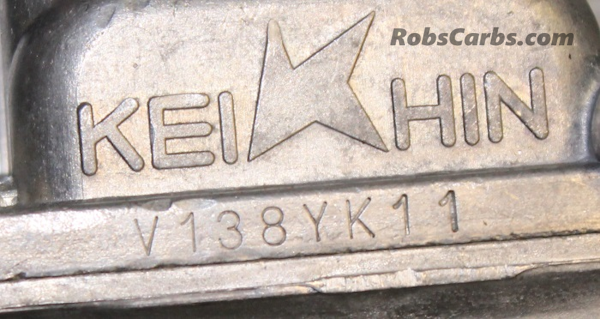

EN450-V138-85 EN450A1 454LTD V138 '85
